Key Advantages of the KS-700
- Does not require different antennas for varying depths, simplifying operation.
- Effective for locating cavities from 0-40 m in solid rock, with capabilities extending to 60 m for large structures like tunnels.
- Battery-operated with a 12V/18Ah power supply for extended use in the field.
- USB interface for easy data transfer and analysis.
- Operational in all weather conditions, ready for use at any temperature.
Components of the KS-700 Ground Radar

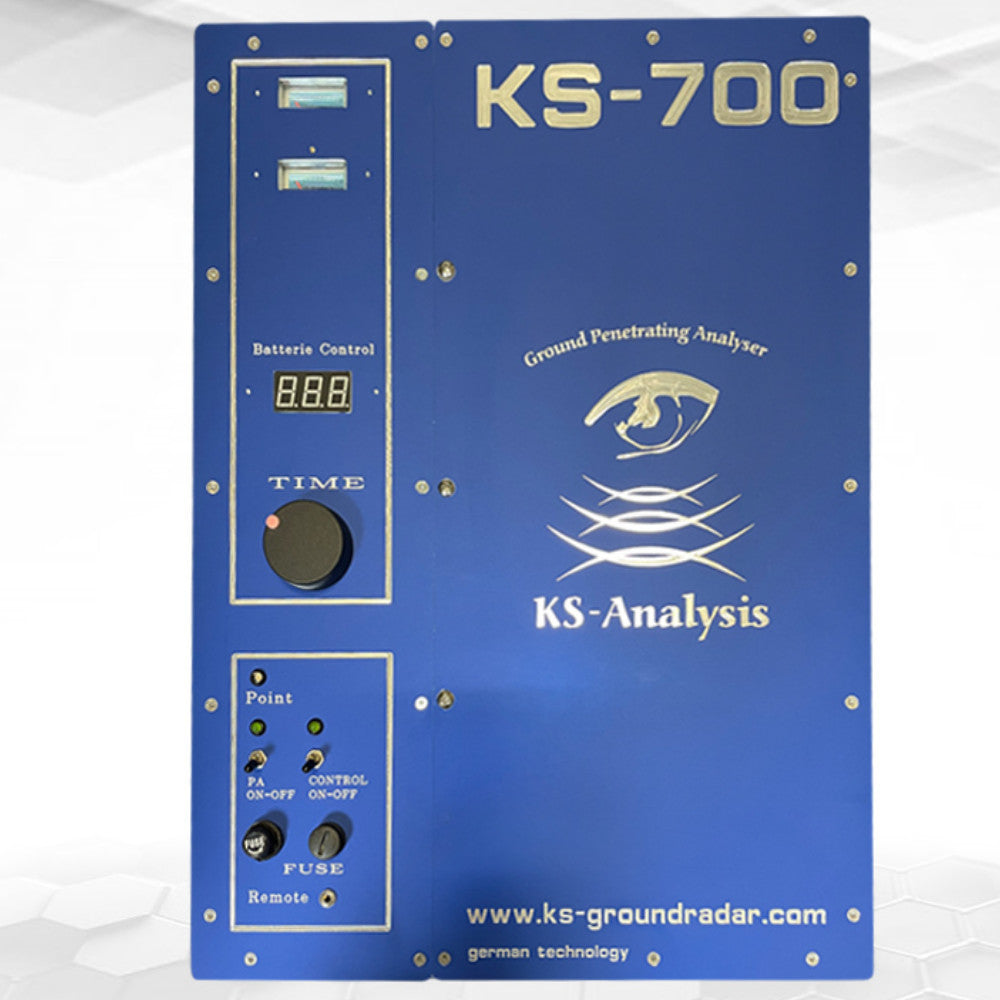

- Electronic control unit.
- Test mounted antenna, shielded in all directions for accurate readings.
- 2D and 3D software for immediate data visualization and analysis.
- User manual and operator video for comprehensive guidance.
Specifications of the KS-700
| Feature | Specification |
|---|---|
| Operating Principle | FMCW Radar |
| Depth Performance | 0-40m in solid rock, up to 60m for large structures |
| Battery | 12V/18Ah |
| Software | 2D and 3D visualization |
| USB Interface | Yes, for data transfer |
| Weather Compatibility | Ready for use at any temperature |
Applications of the KS-700
The KS-700 serves a broad spectrum of applications, from archaeological explorations with metal detection to the examination of contaminated sites, underground sounding for construction projects, and the localization of old underground rooms, adits, tunnels, and more.
Software and Measurement Capabilities
The KS-700 comes equipped with 2D software, enhancing the immediate display of measurement images. With its “Import-Export” function, data can seamlessly be transported into 3D software for in-depth analysis, offering a comprehensive solution for subsurface examination.
Special Solutions and Customized Developments
KS Analysis is dedicated to meeting specific needs through special solutions and customized developments, ensuring that every project can benefit from the advanced capabilities of the KS-700.
Frequently Asked Questions about the KS-700
Do I need to switch antennas for different depth ranges with the KS-700?
No, the KS-700 does not require different antennas for varying depths, making it simpler to operate and more efficient in the field.
Can the KS-700 perform both 2D and 3D subsurface analysis?
Yes, the KS-700 is equipped with software that supports both 2D and 3D analysis, allowing for detailed on-site examination of the subsurface.
What makes the KS-700 suitable for archaeological and construction projects?
The KS-700’s ability to detect cavities and its operational depth of up to 40m in solid rock bodies make it an ideal tool for a wide range of applications, including archaeological digs and underground construction project assessments.
Is the KS-700 easy to use in various environmental conditions?
Yes, the KS-700 is designed to be portable, battery-operated, and ready for use at any temperature, ensuring reliable performance across different environmental conditions.
Summary of the KS-700 Ground Penetrating Radar by KS Analysis
The KS-700 represents a breakthrough in ground radar technology with its advanced FMCW radar principle for cavity detection. Its streamlined design, which eliminates the need for multiple antennas, along with its deep penetration capabilities, makes it a versatile tool for professionals across archaeology, construction, and environmental studies. With its comprehensive 2D and 3D analysis software, the KS-700 offers detailed insights into the subsurface, empowering users with accurate data for informed decision-making.
